KT-310 – Precision,
Simplicity, and Speed for Banknote Bundling
The

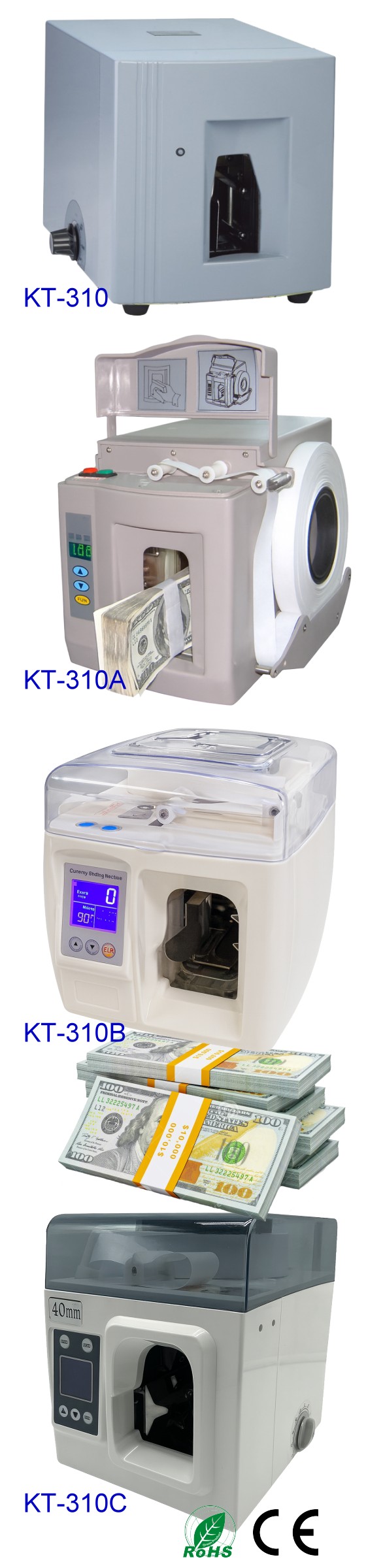

KINGTON KT-310
Banknote Binder is a smart, compact solution designed to meet the high-speed,
high-reliability needs of modern financial institutions, banks, and cash
handling operations.
Developed with years of expertise and refined
technology, the KT-310 offers:
✅
Fast and
precise binding – each bundle is secured in just seconds
✅ Clean, silent
operation – no fumes, no heat emission, no ribbon mess
✅ Compact and
user-friendly design – fits neatly into any counter or back-office
setup
✅ Adjustable
temperature and binding position – easily customizable via digital
controls
✅ Reliable
performance – proven durability trusted by banks and retailers alike
Equipped with a
heat-sealing
mechanism and
advanced
micro-computer control, the NB-250 ensures smooth operation with
consistent binding quality. Its smart standby feature helps conserve energy,
while safety functions—such as auto-stop in case of malfunction—provide peace of
mind.
Pair the KT-310 with
premium-quality thermal binding tape (available in various widths and
lengths) to achieve secure and professional bundles with every operation.
Whether you're bundling
currency for front-line operations or preparing tamper-evident stacks for secure
transport and storage, the KINGTON KT-310 offers the ideal solution for fast,
precise banding of 100-piece banknote bundles—delivering performance in a
compact, easy-to-use design.
The KT-310 is purpose-built to handle single-note bundles (100 notes per band),
where users can apply date stamps or signatures on each paper band for
traceability. However, for enhanced tamper protection and bulk handling, these
individual bundles can be further processed:
Use the KT-610 vacuum packing machine to seal multiple bundles into a
tamper-evident brick
Or use the TA Series automatic banding machine to strap 10 x 100-note bundles
into a single, secure brick
This layered approach ensures each currency pack is not only neatly bundled, but
also ready for vault storage or secure transportation by cash-in-transit
providers.
Together, the KT-310 and its companion systems form a seamless workflow for
institutions that demand speed, security, and professional presentation in every
cash-handling step.
KT-310C Technical Specification:
|
H.S. Code |
8472.9090 |
|
Sealing
Technology |
Heat Sealing System |
|
Warm-up time |
Instant heat No
warming-boot needed. Just plug & play |
|
Bundling Speed |
Approximately 2.5Sec/bundle (100 notes) |
|
Bundling Position |
Adjustable from 35 to 85 mm by side rotary knob |
|
Sealed Temperature |
Adjustable from 90 to 140°C (*Default setting
recommended) |
|
Available Tape Width |
40 mm (20 mm, 30 mm customizable upon request) |
|
Available Tape Length |
100 m (120 m, 150 m customizable upon request) |
|
Applicable Notes Size |
Height: 60–100 mm; Length: variable |
|
Display |
Bright LCD screen |
|
Power Supply |
AC 110V 60Hz / AC 220V 50Hz |
|
Power Consumption |
Max: 55W; Standby: 20W |
|
Dimension |
250 (D) × 195 (W) × 225 (H) mm |
|
Weight |
Net Weight: 5.5 kg; Gross Weight: 6.5 kg |
