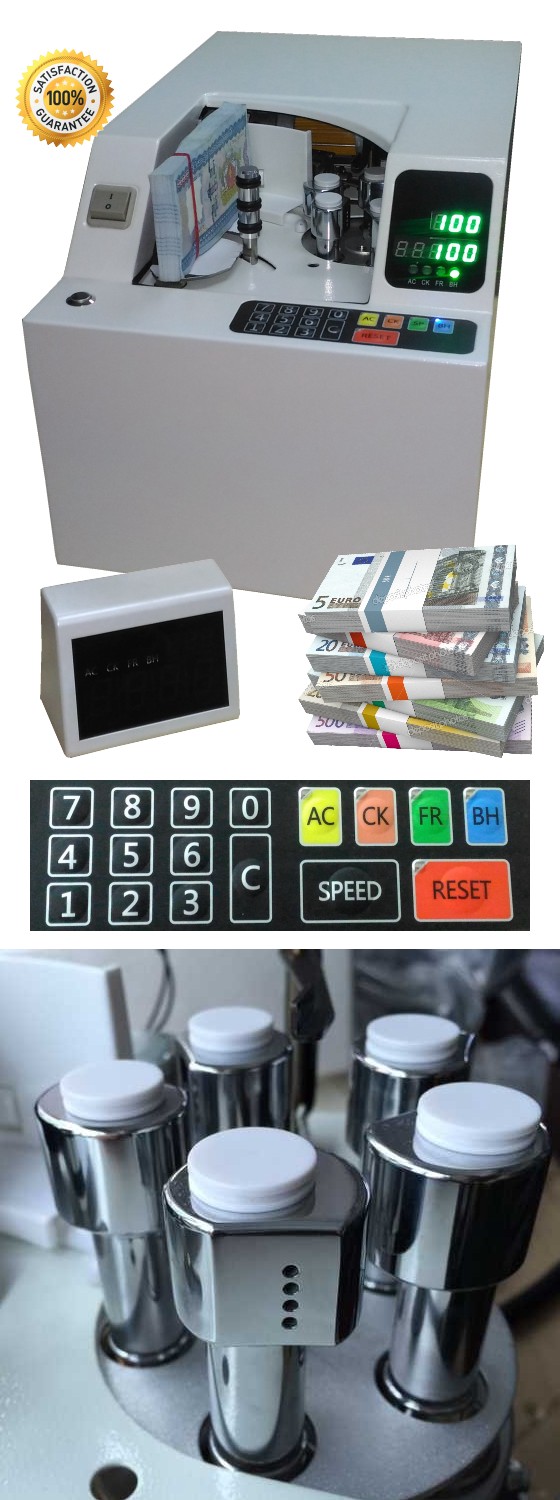

Vacuum Note Counter Tabletop model JB-1000S series is 15% Smaller in size, more reliable performance for Non-Stop Counting Mission, capable to count & check bundle of currency in the same time, without open currency strap.

High Accuracy
Count Sensor System of JB-1000 Series has been designed on Kington's high technology and long experience and has an incomparable accuracy in counting.

Long-term Durability
The mechanism of JB-1000 Series with high reliability continues to be selected and highly evaluated by customers in need of the Heavy-duty equipment. Select JB-1000 Series and make sure of their excellent reliability!

Variable Counting Speed
JB-1000 Series have high speed counting and greatly enhance the customers' efficiency in their routine works. Variable: 3 Sec./100notes, 3.5 Sec./100notes, 4 Sec./100notes, 4.5 Sec. /100notes, suit to different condition of currencies or coupons.

Technical Specification:

Feed System

Vacuum Type Feed System

Counting Speed

Variable: 3, 3.5, 4, 4.5 Sec./100notes.

Batched Count

50, 100 and up to the user needed (from 1-999)


Super bright and large LED, Count: 5 digits, Batch: 3 digits

Applicable note

Width: 45-100; Length: 130-240, Thickness: 0.07-0.12mm

Holder Capacity

Max 200 Sheets

Counting Mode

Check, Free, Batch, ACC, UV

Dimension (mm)

S: 270 (W) x 430 (D) x 280 (H) ; A: 300 (W) x 270 (D) x 790 (H)

Net Weight

JB-1000S (tabletop) 21 kg, JB-1000A (floorstand) 31 kg

Power Supply

AC 110V 60 Hz or 220-240V, 50 Hz

Power Consumption

Max. 400W, Ampere: 5A

Ambient Conditions

Temperature 0~40 degree, Humidity 30 ~ 75%

Optional Device

OK Stamp Module, UV Detection, Note Plate, Remote Display

Packing Detail

4 Sets/pallet, Size: 82*67*96cm, Gross weight: 180 kgs

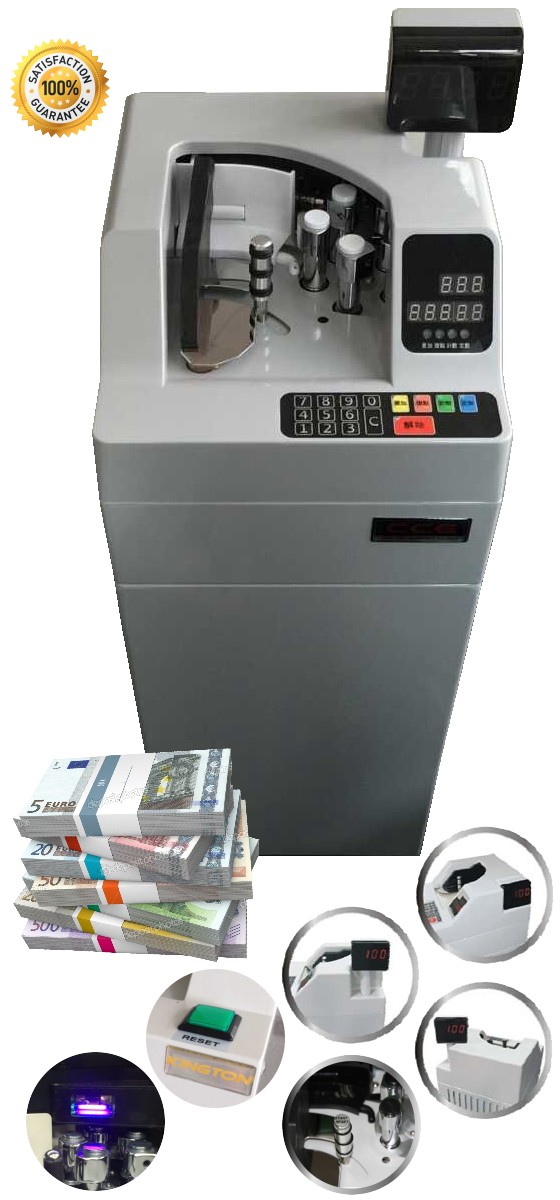

Vacuum Note Counter Floorstand model JB-1000A series is especially for heavy-duty counting capable to count loose banknotes or bundle of currency, no need open currency strap highly improve cash processing efficiency.


Versatile Modes
Versatile Modes of JB-1000 Series comply with the customers' various demands.
Check Mode / ACC-Count / BATCH / Check Mode + ACC Count/ BATCH+ACC-Count Stamp Mode is also available as an optional kit of Stamping Device.

Easy Operation
Compact and excellent design of JB-1000 Series was made for the operators' easier usage. JB-1000 Series are equipped with Reset Switches in both left and right hand sides. Equipped with 360 degree rotatable large and bright LED Display, for CCTV or customer to check counting result easily to minimize the operators' heavy burden.

Counterfeit Detection
JB-1000 Series UV detection designed so that fake notes could be detected & selected out during the counting process. Users can save time from checking counterfeit between friction counter & counterfeit detector. It is capable of counting loose banknote & strap 100pcs banknote without opening the strap.
